568flat-ventoy-theme

🗃️Github | Gitee | Pling

568flat is a cool grub 2 theme which is designed for ventoy.

568flat is designed for resolution of 1024x544 and above.

If your screen resolution is over 2048x1088, please use 568flat_x2 for better experience.

Installation

If the resolution is not over 2048x1088, please goto 568flat Installation; Else, goto 568flat_x2 Installation.

Download the theme and extract it.

568flat Installation

Copy the 568flat folder (568flat-en folder for English version) into ventoy/themes which should be located in the partition where your ISOs are located.

Make sure that ventoy/ventoy.json (at least) contains:

{
    "theme":{
        "file":[
            "/ventoy/themes/568flat/theme.txt"
        ],
        "fonts":[
            "/ventoy/themes/568flat/SmileySans-Oblique_48.pf2",
            "/ventoy/themes/568flat/SmileySans-Oblique_32.pf2"
        ]
    }
}

English version:

{
    "theme":{
        "file":[
            "/ventoy/themes/568flat-en/theme.txt"
        ],
        "fonts":[
            "/ventoy/themes/568flat-en/SmileySans-Oblique_48.pf2",
            "/ventoy/themes/568flat-en/SmileySans-Oblique_32.pf2"
        ]
    }
}

568flat_x2 Installation

Copy the 568flat_x2 folder (568flat_x2-en folder for English version) into ventoy/themes which should be located in the partition where your ISOs are located.

Make sure that ventoy/ventoy.json (at least) contains:

{
    "theme":{
        "file":[
            "/ventoy/themes/568flat_x2/theme.txt"
        ],
        "fonts":[
            "/ventoy/themes/568flat_x2/SmileySans-Oblique_96.pf2",
            "/ventoy/themes/568flat_x2/SmileySans-Oblique_64.pf2"
        ]
    }
}

English version:

{
    "theme":{
        "file":[
            "/ventoy/themes/568flat_x2-en/theme.txt"
        ],
        "fonts":[
            "/ventoy/themes/568flat_x2-en/SmileySans-Oblique_96.pf2",
            "/ventoy/themes/568flat_x2-en/SmileySans-Oblique_64.pf2"
        ]
    }
}

Q&A

• Could not find some of the files or directories in my ventoy disk.
  • Please create one if missing.

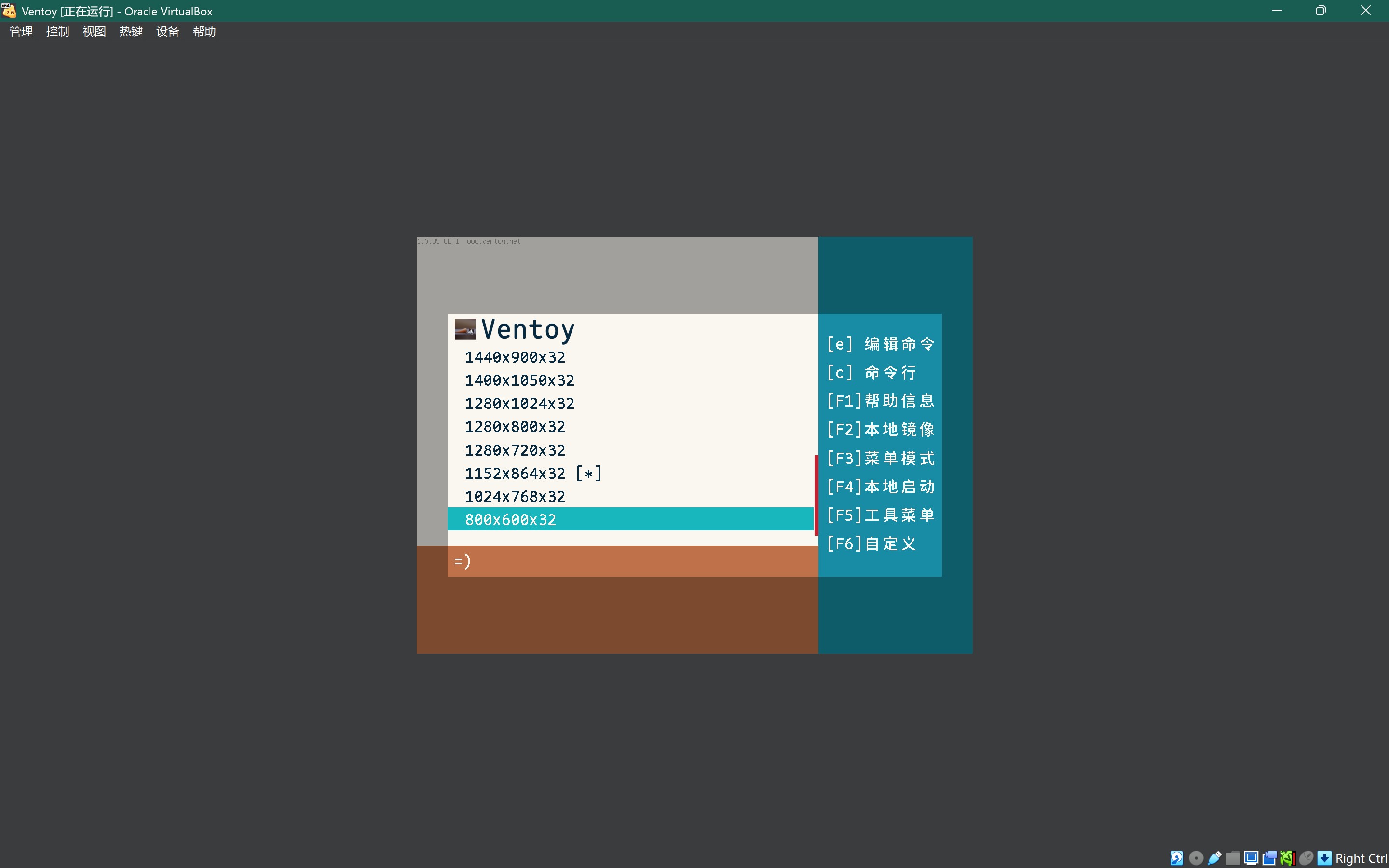

• UI looks too small on my screen.
  • Lower the resolution of ventoy or use hi-res version of the theme, such as 568flat_x2 instead of 568flat.
• [Memdisk] or other status not showing.
  • The statuses should show when you enable them. And it works with ventoy only.
• Does the theme supports grub?
  • In theory, yes. But it is not tested.
• What font is this?
  • Smiley Sans.
• Why using a picture instead of a label as title?
  • Some how, I could only make ventoy use the last font it loads by now. So a picture is used temporarily.

---

Please leave your comments and suggestions. Let me know if what is wrong or can be improved.

:-D

---

About Smiley Sans

More info about ventoy themes
